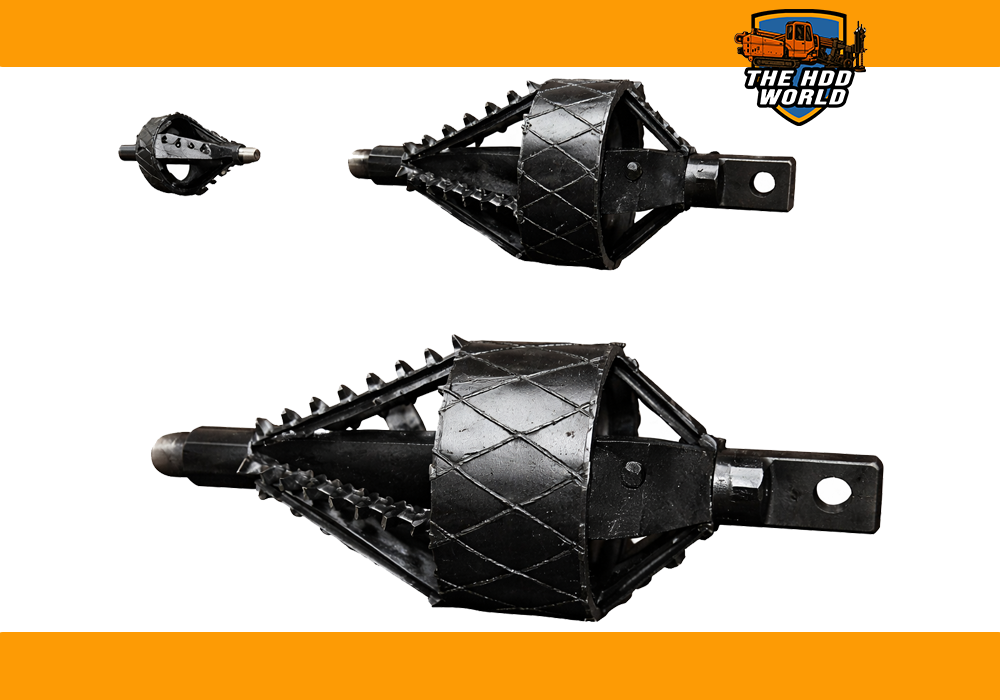

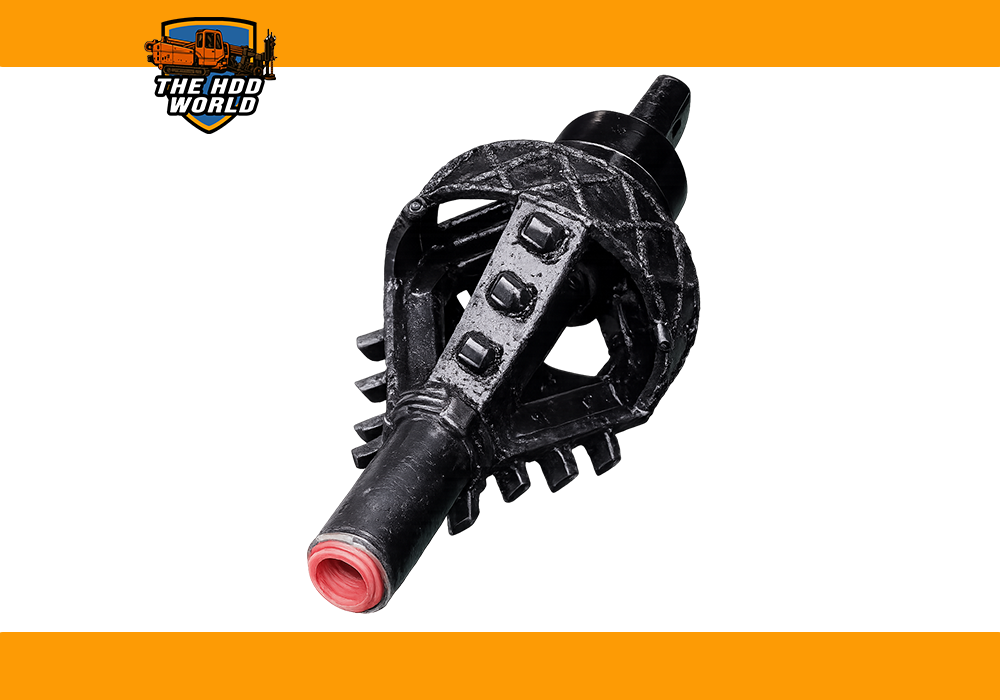

FLY CUTTER REAMER
FLY CUTTER REAMER - Image 2
FLY CUTTER REAMER - Image 3
FLY CUTTER REAMER - Image 4

FLY CUTTER REAMER

Parameter Value Parameter Value
Product Type HDD Reamer Design Fly Cutter
Material High-strength alloy steel Cutting Blades Wear-resistant alloy / carbide
Wear Resistance High Application HDD pipe installation
Available Sizes 6″ – 48″ Condition New

Request a Quote & Product Details

Technical Specifications & Size Compatibility

Reamer Size vs Pipe Size Compatibility

Reamer Size For 60mm Pipe For 73mm Pipe For 83mm Pipe For 89mm Pipe For 102mm Pipe
6″ / 150mm ✔ – – – –
8″ / 200mm ✔ ✔ ✔ – –
10″ / 250mm ✔ ✔ ✔ ✔ ✔
12″ / 300mm ✔ ✔ ✔ ✔ ✔
14″ / 350mm ✔ ✔ ✔ ✔ ✔
16″ / 400mm ✔ ✔ ✔ ✔ ✔
18″ / 450mm ✔ ✔ ✔ ✔ ✔
20″ / 500mm ✔ ✔ ✔ ✔ ✔
22″ / 550mm ✔ ✔ ✔ ✔ ✔
24″ / 600mm ✔ ✔ ✔ ✔ ✔
26″ / 650mm ✔ ✔ ✔ ✔ ✔
28″ / 700mm ✔ ✔ ✔ ✔ ✔
30″ / 750mm – ✔ ✔ ✔ ✔
32″ / 800mm – ✔ ✔ ✔ ✔
36″ / 900mm – – ✔ ✔ ✔
40″ / 1000mm – – – ✔ ✔
44″ / 1100mm – – – ✔ ✔
48″ / 1200mm – – – ✔ ✔
Feature Advantage
Fly Cutter Design Strong and aggressive cutting performance
Adjustable Cutting Structure Accurate control over bore diameter
Heavy-Duty Steel Body High durability and long service life
Wear-Resistant Cutters Reduced wear and extended tool life
Balanced Structure Smooth rotation with reduced vibration
Wide Size Range Suitable for small to large pipe diameters
Standard HDD Connection Easy installation on HDD machines
Low Maintenance Reduced downtime and operating cost



Component Specification
Tool Type Fly Cutter Reamer
Body Material High-strength alloy steel
Cutting Structure Fly cutter blades
Cutting Material Wear-resistant alloy / carbide
Application Type Horizontal Directional Drilling (HDD)
Connection Type Standard HDD threaded connection
Operating Ground Soil, clay, mixed ground
Manufacturing Process Forged & machined construction

Description

The Fly Cutter Reamer is a high-performance HDD tool designed for aggressive and efficient hole enlargement during horizontal directional drilling operations. Its adjustable cutter structure allows precise control over bore size while delivering strong cutting action in soil, clay, and mixed ground conditions.

Manufactured from high-strength alloy steel and fitted with wear-resistant cutting blades, Fly Cutter Reamers are ideal for projects that require high productivity, accuracy, and durability in underground pipe installation.

Applications

  • Telecommunication HDD projects

  • Water & sewer pipeline installation

  • Gas pipeline drilling

  • Utility & infrastructure projects

  • Horizontal directional drilling operations
