| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Product Type | HDD Reamer | Design | Diamond Wing Cutter |
| Material | High-strength alloy steel | Cutting Teeth | High-density carbide |
| Wear Resistance | High | Application | HDD pipe installation |
| Available Sizes | 6″ – 28″ | Condition | New |
| Reamer Size | For 60mm Pipe | For 73mm Pipe | For 83mm Pipe | For 89mm Pipe | For 102mm Pipe |
|---|---|---|---|---|---|
| 6″ / 150mm | ✔ | – | – | – | – |
| 8″ / 200mm | ✔ | ✔ | ✔ | – | – |
| 10″ / 250mm | ✔ | ✔ | ✔ | ✔ | ✔ |
| 12″ / 300mm | ✔ | ✔ | ✔ | ✔ | ✔ |
| 14″ / 350mm | ✔ | ✔ | ✔ | ✔ | ✔ |
| 16″ / 400mm | ✔ | ✔ | ✔ | ✔ | ✔ |
| 18″ / 450mm | ✔ | ✔ | ✔ | ✔ | ✔ |
| 20″ / 500mm | ✔ | ✔ | ✔ | ✔ | ✔ |
| 22″ / 550mm | ✔ | ✔ | ✔ | ✔ | ✔ |
| 24″ / 600mm | ✔ | ✔ | ✔ | ✔ | ✔ |
| 26″ / 650mm | – | ✔ | ✔ | ✔ | ✔ |
| 28″ / 700mm | – | ✔ | ✔ | ✔ | ✔ |
| Feature | Advantage |
|---|---|
| Diamond Wing Cutter Design | Aggressive and efficient cutting action |
| High-Density Carbide Teeth | Excellent wear resistance and long lifespan |
| Heavy-Duty Steel Body | High strength and durability |
| Stable Wing Structure | Smooth rotation with reduced vibration |
| Strong Cutting Performance | Ideal for hard soil and mixed ground |
| Wide Size Range | Suitable for multiple pipe diameters |
| Standard HDD Connection | Easy installation on HDD machines |
| Low Maintenance | Reduced downtime and operating cost |
| Component | Specification |
|---|---|
| Tool Type | Diamond Wing Cutter Reamer |
| Body Material | High-strength alloy steel |
| Cutting Structure | Wing-type cutter |
| Cutting Teeth | High-density carbide |
| Application Type | Horizontal Directional Drilling (HDD) |
| Connection Type | Standard HDD threaded connection |
| Operating Ground | Hard soil, clay, mixed ground |
| Manufacturing Process | Forged & machined construction |

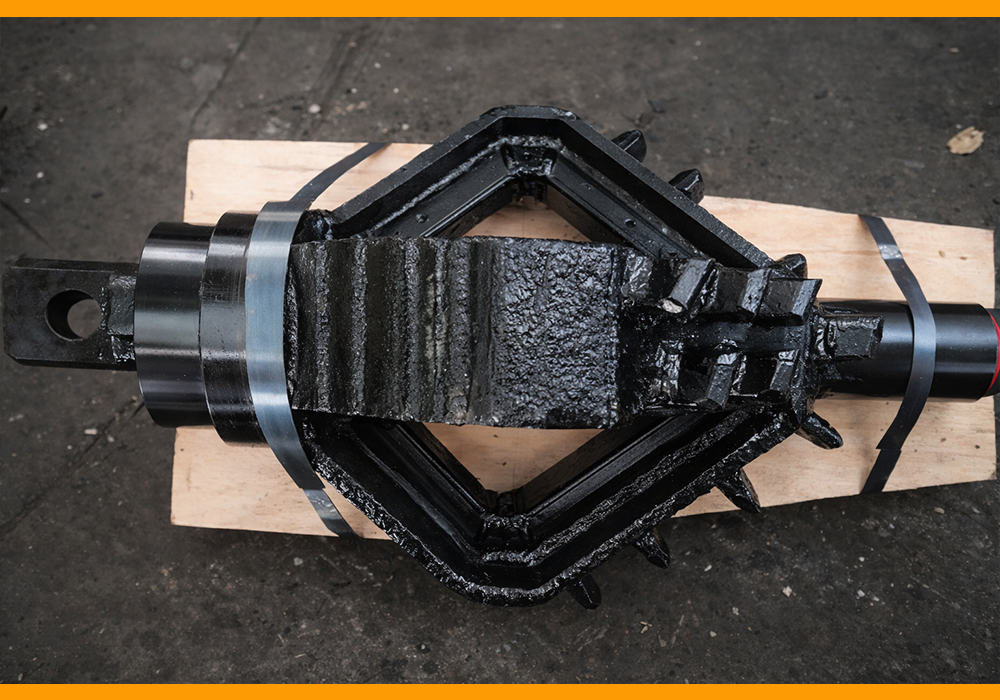

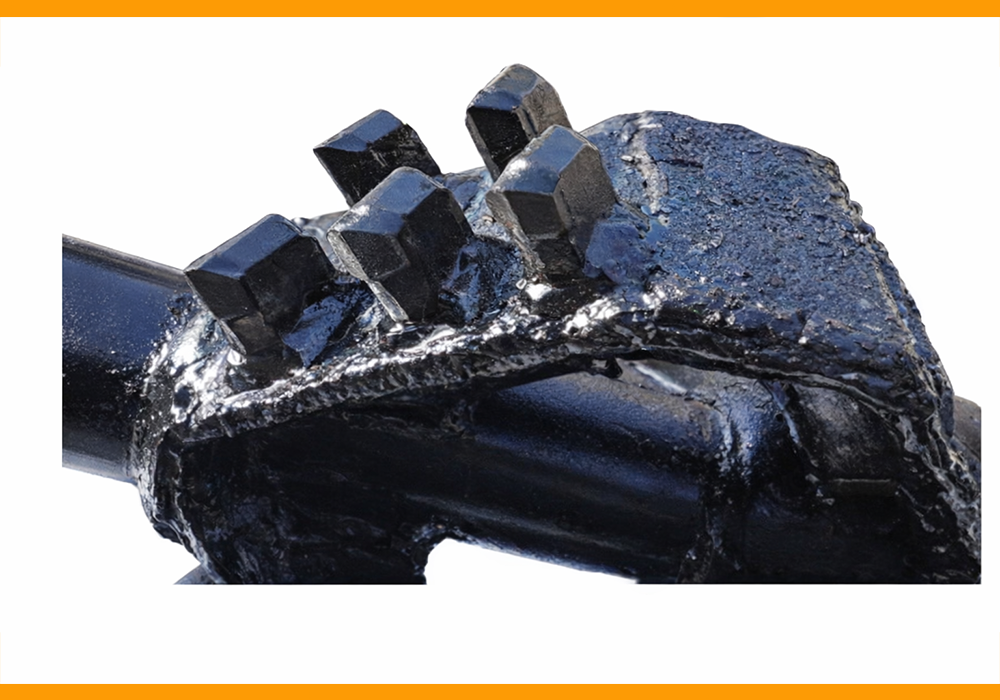

The Diamond Wing Cutter Reamer is a heavy-duty HDD tool designed for high-efficiency hole enlargement in hard soil, mixed ground, and abrasive conditions. Its wing-type cutter structure combined with high-density carbide cutting teeth provides aggressive cutting performance, excellent stability, and long service life.
Manufactured from high-strength alloy steel with precision machining, this reamer is ideal for telecommunication, water, gas, and utility pipeline installations where durability and cutting accuracy are critical.
Telecommunication HDD projects
Water & sewer pipeline installation
Gas pipeline drilling
Utility & infrastructure projects
Hard soil & mixed ground drilling operations
